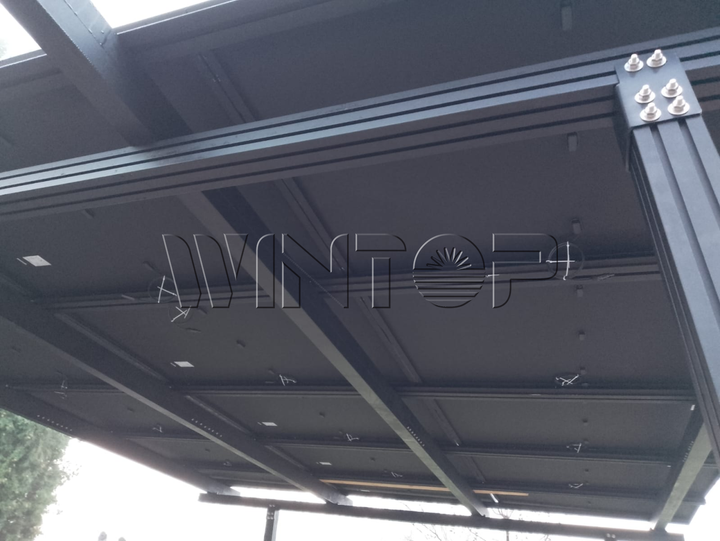

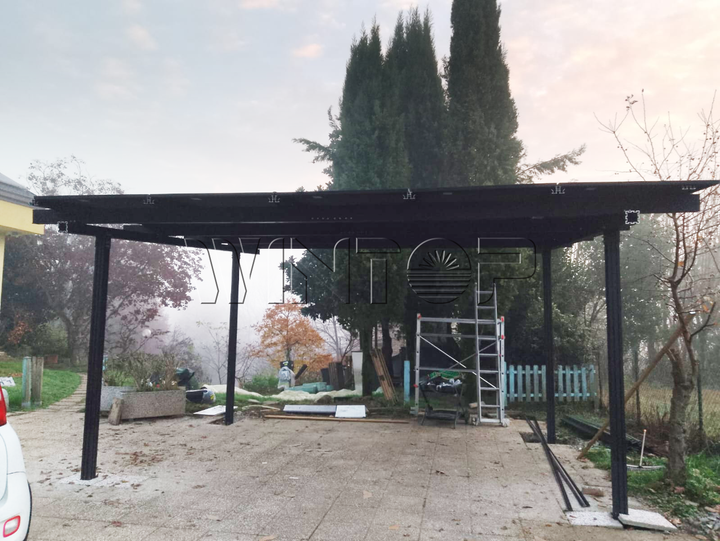

The Carport solar mounting system provides both shade and solar energy. It can also be customized according to your ground size. Module size is 1722x1134x30mm. Array 3x5 totla of 15 panels
Technical Parameters
Installation location |
Ground |
Installation angle |
Up to request |
Wind load |
60m/s (216kmh/133mph) |
Snow load |
1.4KN/m² |
Applicable module type |
Mono-crystalline, Poly-crystalline, Double wave and Thin film |
Module Orientation |
Horizontal, Vertical |
Design standard |
AS/NZS1170,JIS C 8955-2017 |
Bracket material |
AL6005-T5(Anodized Oxidation) |
Fastener Material |
Stainless steel SUS304 |
Warranty&Duration |
10 years&More than 20 years |
Features & Benefits
