Lessing Hybrid off/on grid invertor 5KW

Hybrid Inverter Product Overview

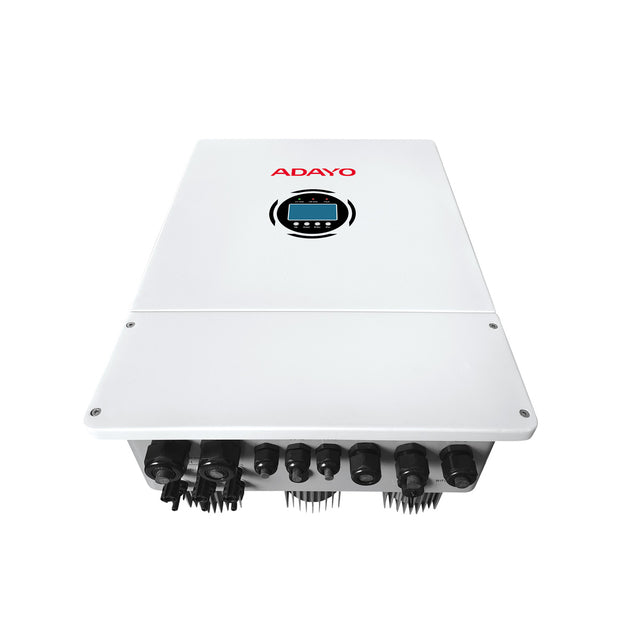

ADAYO Hybrid Inverter – ED Series

Model: ED3600A / ED4600A / ED5000A
Brand: ADAYO
Item Name: Hybrid Inverter
Power: 3600W / 4600W / 5000W
MPPT Range: 120–430V
PV Input Power: 7000W
PV Input Voltage: 500V
Battery Type: Lithium / Lead-Acid
Battery Voltage Range: 41.6–58.5V
Size: 350 × 580 × 230 mm
Net Weight: 25 kg
MOQ: 16 pcs
Product Description:
ADAYO Lessing Hybrid Solar Inverter  5KW is a typical on-grid and off-
grid solar inverter product series.

Product Description (continued):
ADAYO Lessing Hybrid Solar Inverter  5KW is a typical on-grid and off-
grid solar inverter product series.
It is usually connected with the PA05G, PA05S wall pack batteries to build a solar power
station.
ADAYO Lessing hybrid inverter power ranges from 3.6kW, 4.6kW to 5kW. With a built-in
MPPT charger, this inverter series has multiple modes.
It is the core component of the solar energy storage system.
The Lessing hybrid inverter is single-phase and fully certified for the European market. Key
features include:
- Multiple operating modes: on-grid, off-grid, and UPS with MPPT control.
- Compatible with almost all 24V/48V LiFePO4 battery packs and lead-acid batteries.

Additional Product Features:
- Integrated smart APP can remotely diagnose and update the system.
- One key to reactivate the LiFePO4 battery pack or pre-charge the input stage.
- Frequency droop control, supports up to 6 units in parallel.
- Supports both DC couple and AC couple to retrofit existing solar systems.
Summary Features (Icon Section):
- Multiple operating modes: on-grid, off-grid, and UPS with MPPT control.
- Integrated smart APP for remote diagnostics and updates.
- One-touch LiFePO4 battery reactivation and input pre-charge.
- Compatible with almost all 48V LiFePO4 and lead-acid batteries.
- Scalable system with frequency droop control and support for parallel operation.
