Angle Adjustable Aluminum Easy Solar Panel Bracket for Garden
Product Description

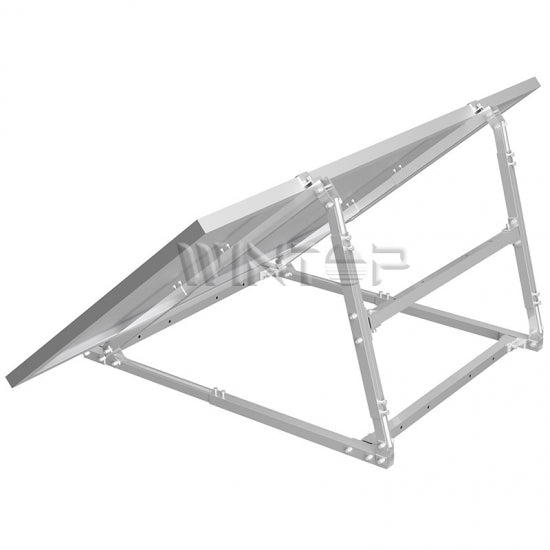

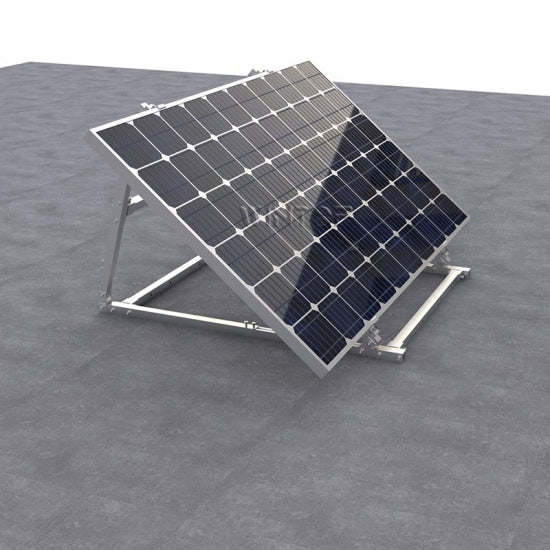

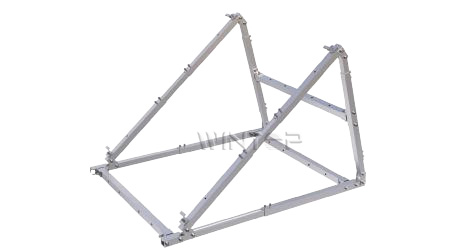

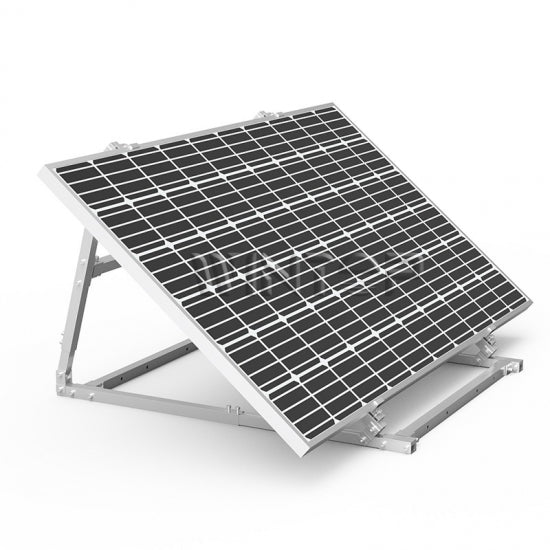

Wintop easy solar bracket, a highly pre-assembled mounting structure for achieving our home energy independence. Simply use it to combine with solar panel and micro inverter, which is designed for multiple scenarios. Tilt angle can be adjusted according to different installation environments and requirements to obtain the maximum power generation.
Technical Parameters
| Installation location | Garden, balcony, railing, walls and etc |
|
Adjustable Angle Range
|
15°-50° |
| Material |
AL6005-T5, SUS304, EPDM
|
|
Gross weight per bracket (kg)
|
≈8
|
| Applicable module type | Framed |
|
Length of solar module (mm)
|
≤2200
|
|
Width of solar module (mm)
|
751≤A≤1313mm
|
|
Thickness of solar module (mm)
|
30-50
|
|
Orientation module
|
Landscape
|
| Warranty | 10 years |
Features & Benefits

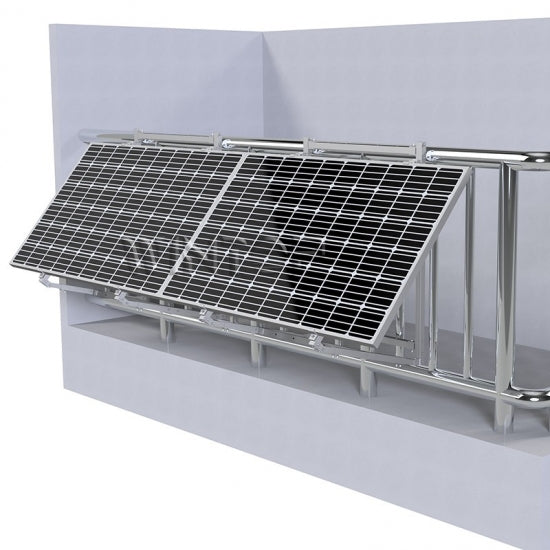

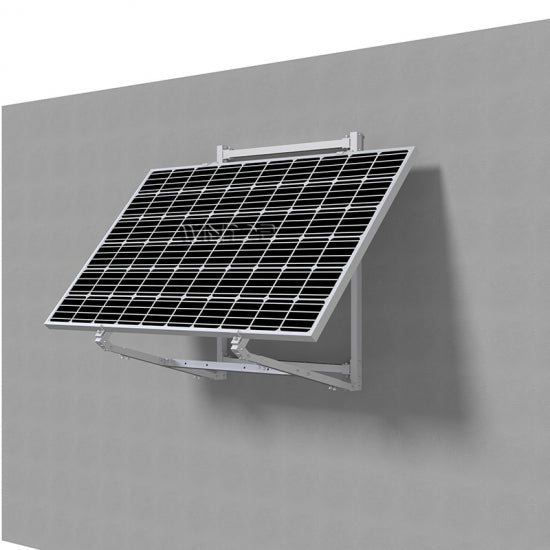

- Adapt to multiple scenarios: garden, balcony, railing, walls and etc.
- Adjustable angle manually to adjust the PV module angle for more energy generation.
- Modular design with plug and play connection, quick and easy installation.
