Residential Small Solar Easy Bracket Kit for Home Balcony
Brand: Adayo Power
Product Description

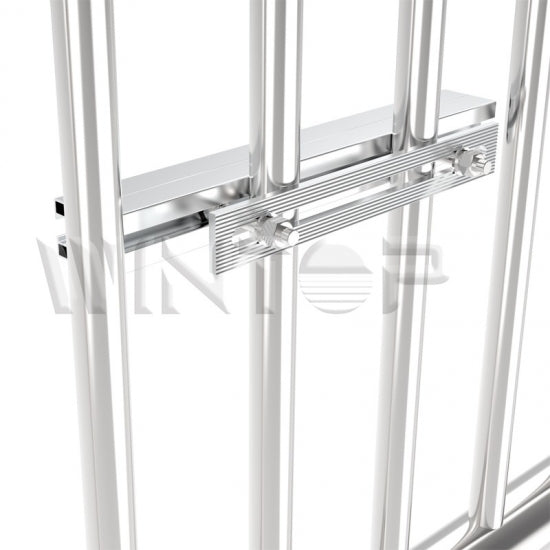

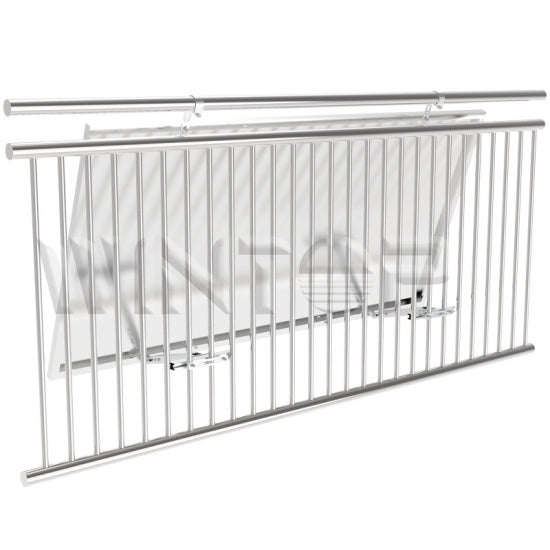

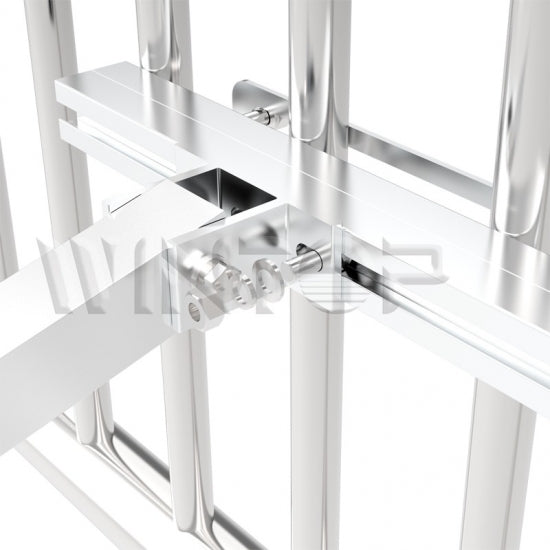

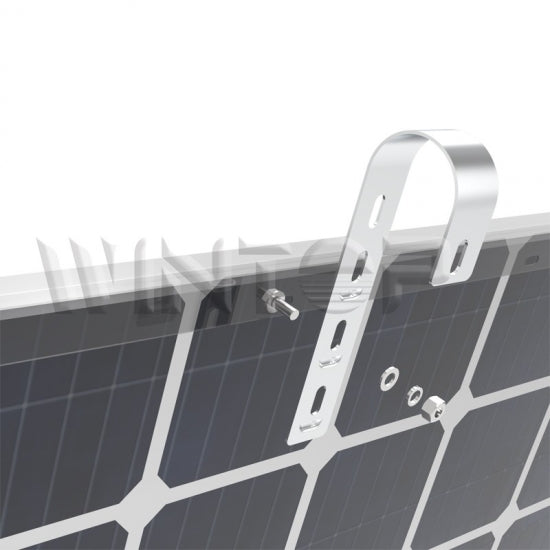

The Wintop easy solar bracket kit is directly hung on the railing with railing hooks, and can be fixed with bolts. It is easy to install, with few accessories and convenient transportation.

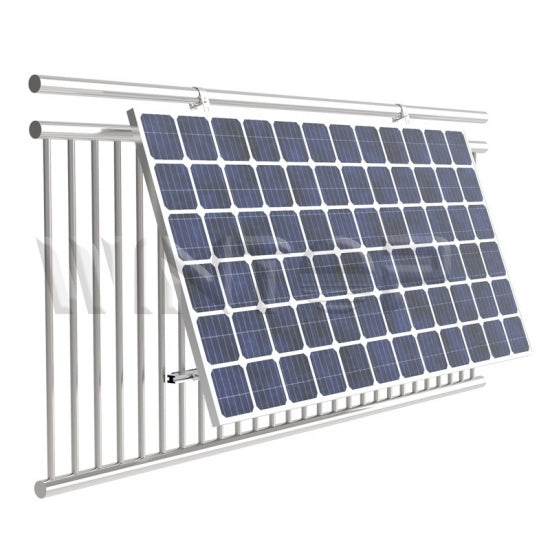

The Easy Solar Mount is a highly pre-assembled solar mounting structure that enables energy independence in our homes. Just combine it with solar panels and micro inverters, it can be used in multiple scenarios. The inclination angle can be adjusted according to different installation environments and requirements to obtain the maximum power generation.
Technical Parameters
| Installation location | balcony, railing, walls and etc |
| Adjustable Angle Range | 10-30° |
| Material |
AL6005-T5, SUS304, EPDM
|
| Gross weight per bracket (kg) |
≈8
|
| Applicable module type | Framed |
| Length of solar module (mm) |
≤2200
|
|
Width of solar module (mm)
|
751≤A≤1313mm
|
| Thickness of solar module (mm) |
30 & 35 mm
|
| Orientation module |
Landscape
|
| Warranty | 10 years |
Features & Benefits
- Adapt to multiple scenarios: balcony, railing, walls and etc.

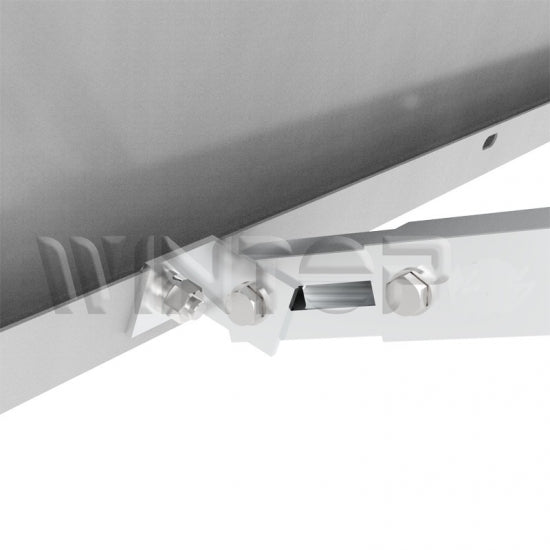

- Adjustable angle manually to adjust the PV module angle for more energy generation.
- Modular design with plug and play connection, quick and easy installation.
- Highly anti-corrosion 6005-T5 aluminum alloy and robust 304 stainless steel.
- Completely pre-assembled, simply unfolded and secured to the balcony for Installation.
